MAX200
3-4 axle extendable platform semi-trailer, up to 29,800 mm, for transporting long loads
Extendable platform for long loads
The MAX200 is a 3-4 axle platform semi-trailer designed for the efficient transport of long loads — from steel components and precast concrete beams to large industrial goods. Its extendable platform, from 13,600 mm up to 29,800 mm in the double extension version, provides maximum flexibility. With a low tare weight, robust construction, loading height of just 990 mm, and the option for hydraulic steering, MAX200 is the ideal partner for special transport.
Advantages at a glance
3-4 axle platform (flatbed) semi-trailer, ideal for long loads
Extendable platform from 13,600 mm up to 29,800 mm (double extension)
Low tare weight, robust construction, and easy maintenance
Low loading height of 990 mm for large volumes
Optional hydraulic steering for maneuvering in tight spaces
Technical specifications
Vehicle type: Platform (flatbed) semi-trailer
Axle configuration: 3 - 4 axles
Tyres: 17.5" / 19.5" / 22.5"
Suspension: Air suspension
Standard width: 2,540 mm
Platform length (base): 13,600 mm
Maximum length (extendable): 29,800 mm
Loading height: 990 mm

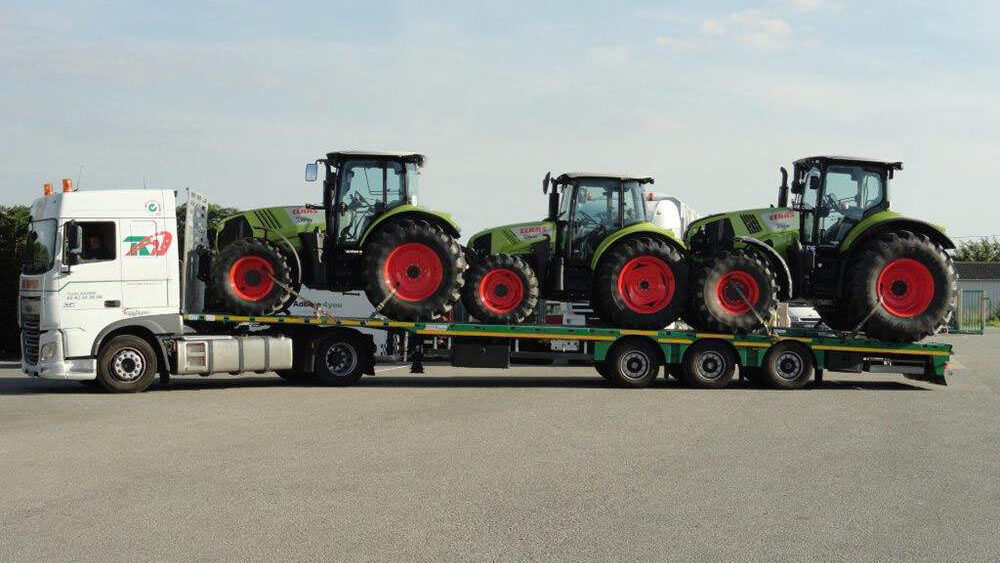

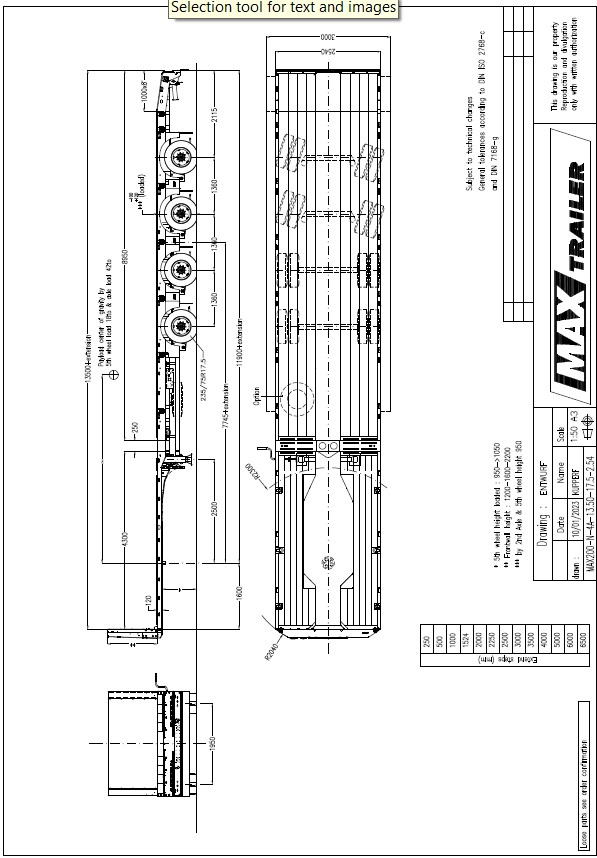

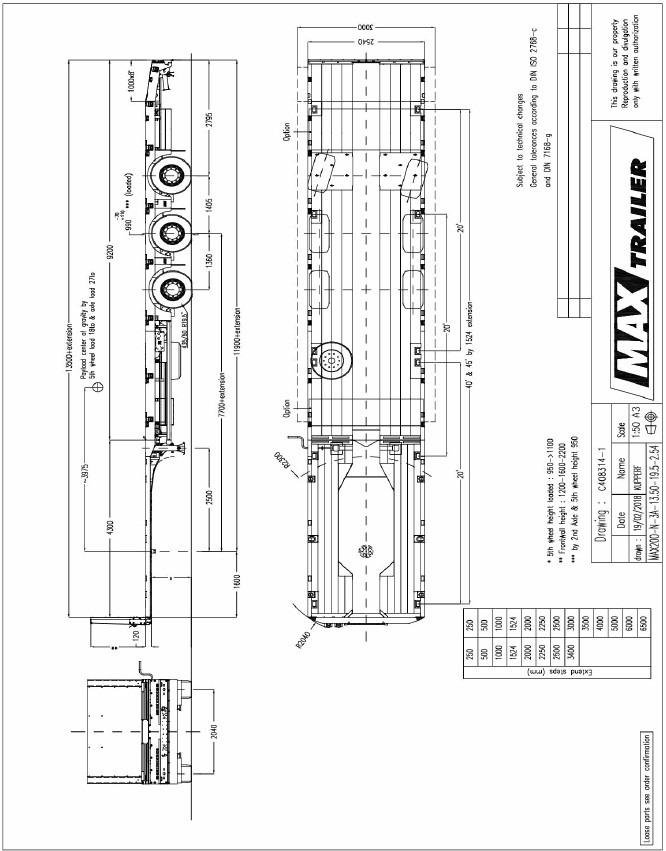

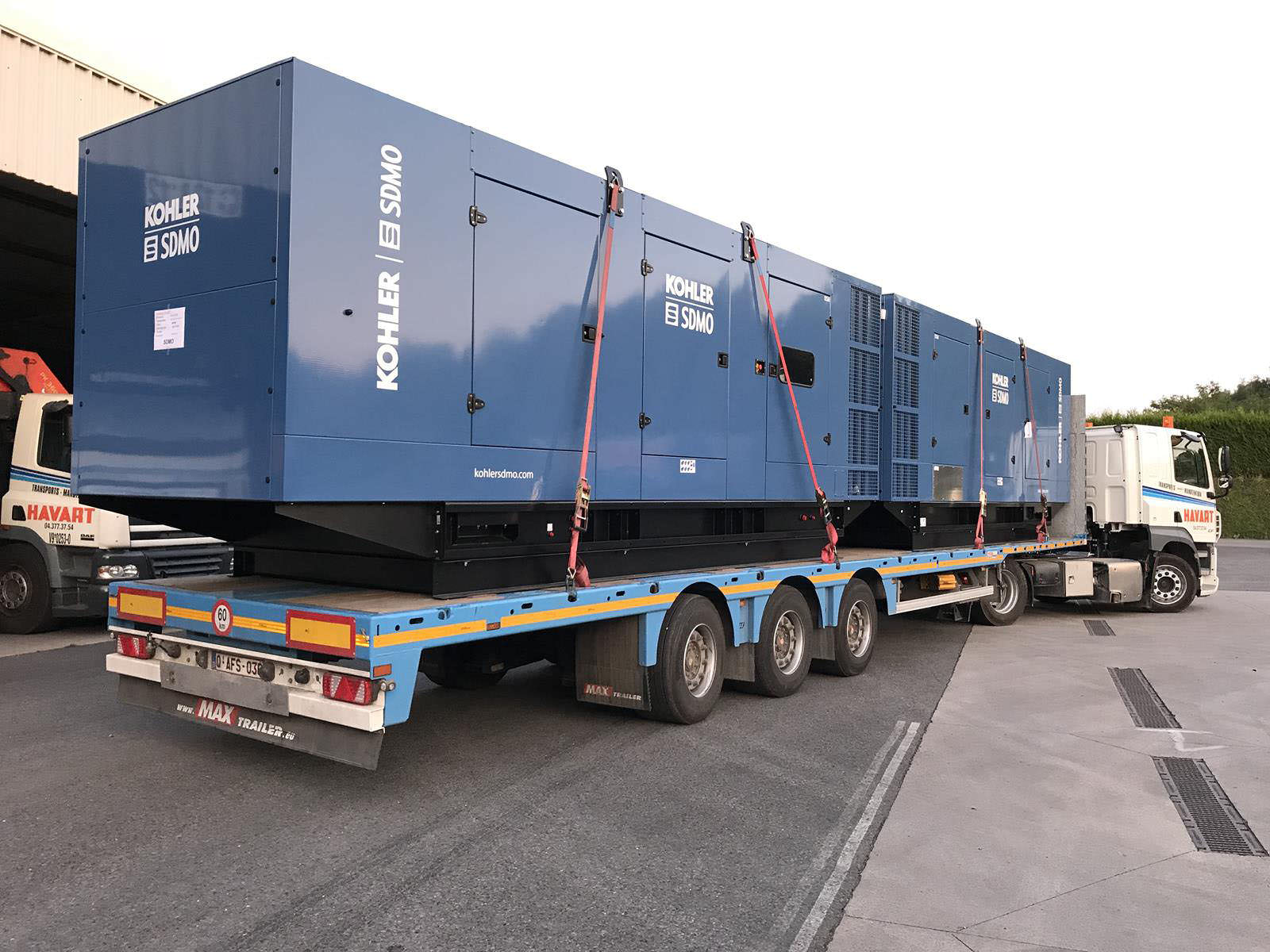

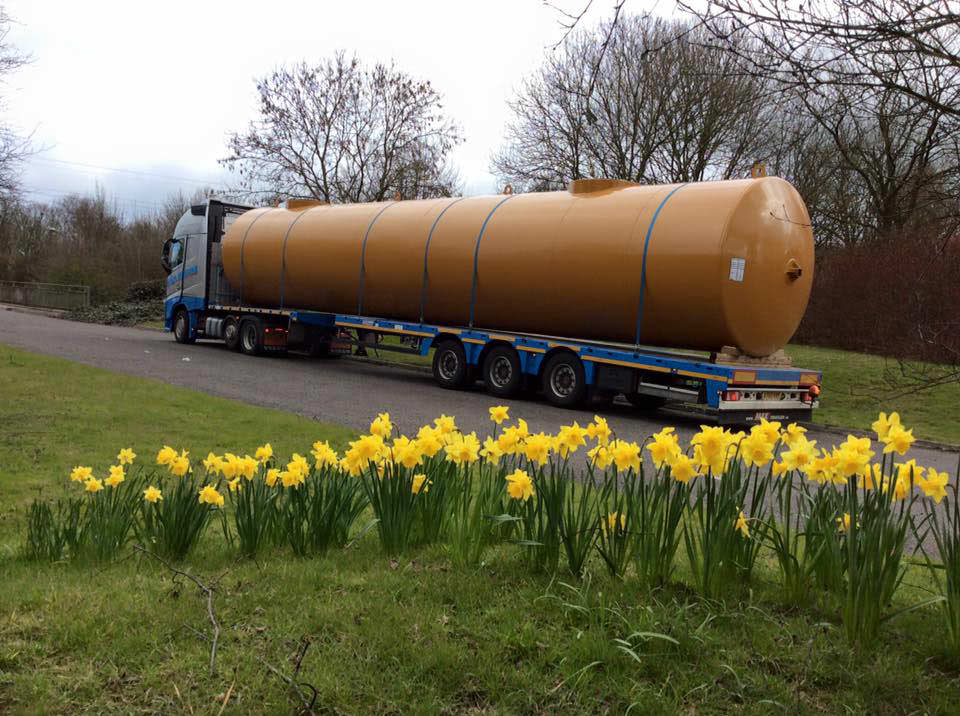

Images
Sales team
We always strive to be close to you! Contact us for more information.
