Profi Liner BS

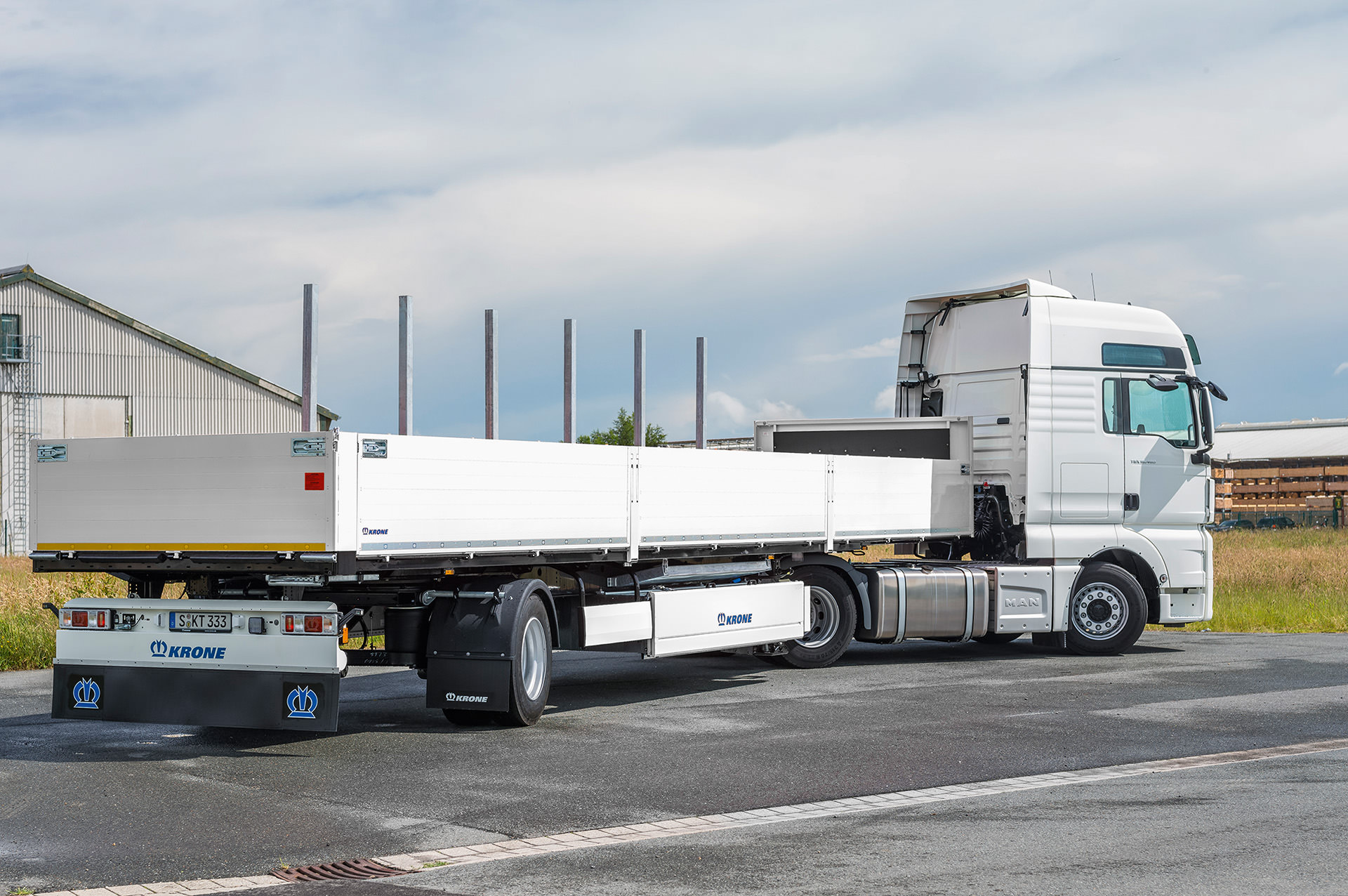

Open platform semi-trailer with drop sides, coupling height 1,040–1,250 mm, for construction materials.

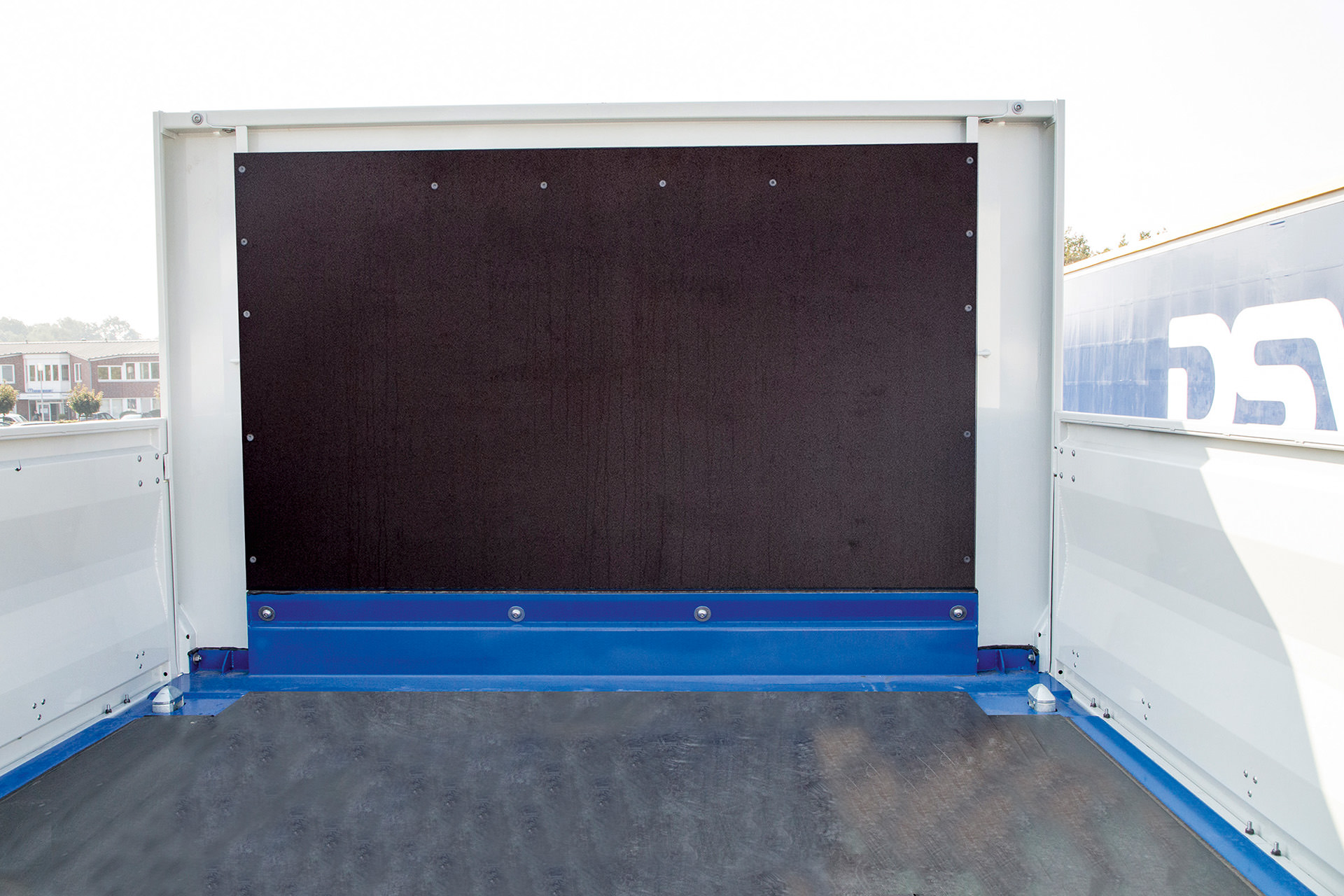

Profi Liner Multi Steel Open Platform Semi-Trailer – KRONE’s solution for safe and fast transport of construction materials. Ideal for welded mesh, trusses, and 2D/3D elements, with a 13.62 m platform, MultiLock frame, reinforced front panel, and folding sides.
Unladen weight of 5.5 t and forklift axle load of 7 t, with Multi Steel system for fast form-closed securing and XL standard compliance. Available as flatbed or with drop sides, for flexible operation and quick inspections.
Key advantages
Save time – up to 50% faster than traditional securing methods

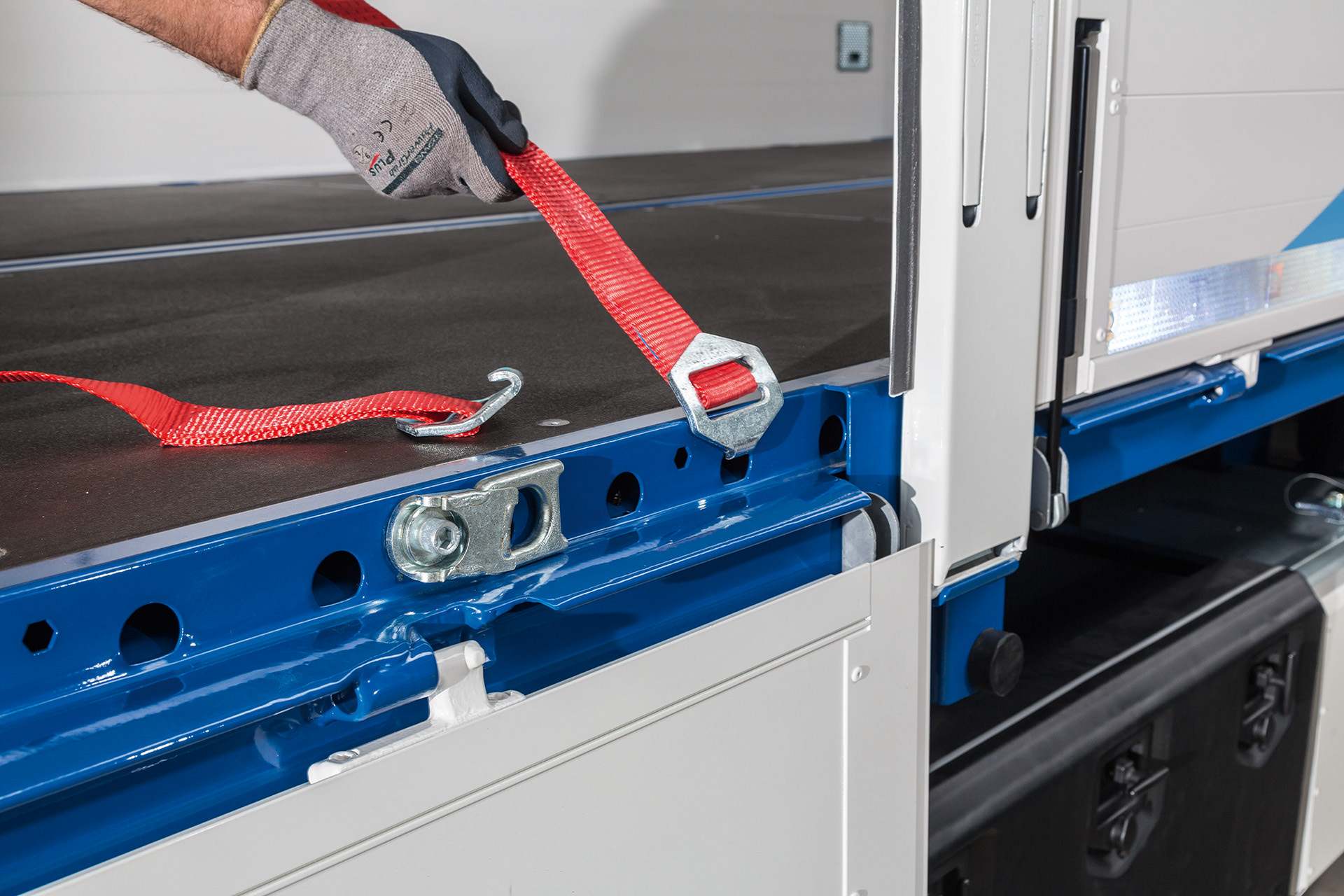

Form-closed load securing for maximum stability
Greater flexibility for mixed cargo transport
TÜV Nord certification and VDI 2700 compliance for welded mesh and reinforcement elements
Weight-optimized posts with integrated strap guide
Available as flatbed or with folding drop sides
Technical data
King pin load: 12,000 kg
Axle load (technical max): 27,000 kg
Gross vehicle weight (technical max): 39,000 kg
Unladen weight: approx. 6,370 kg
Payload capacity: approx. 32,630 kg
Axle spacing: 1,310 / 1,310 mm
Front structure height: 125 mm
Coupling height: 1,040–1,250 mm
Loading compartment length: 13,620 mm
Loading compartment width: 2,480 mm
Front turning radius: 2,040 mm
